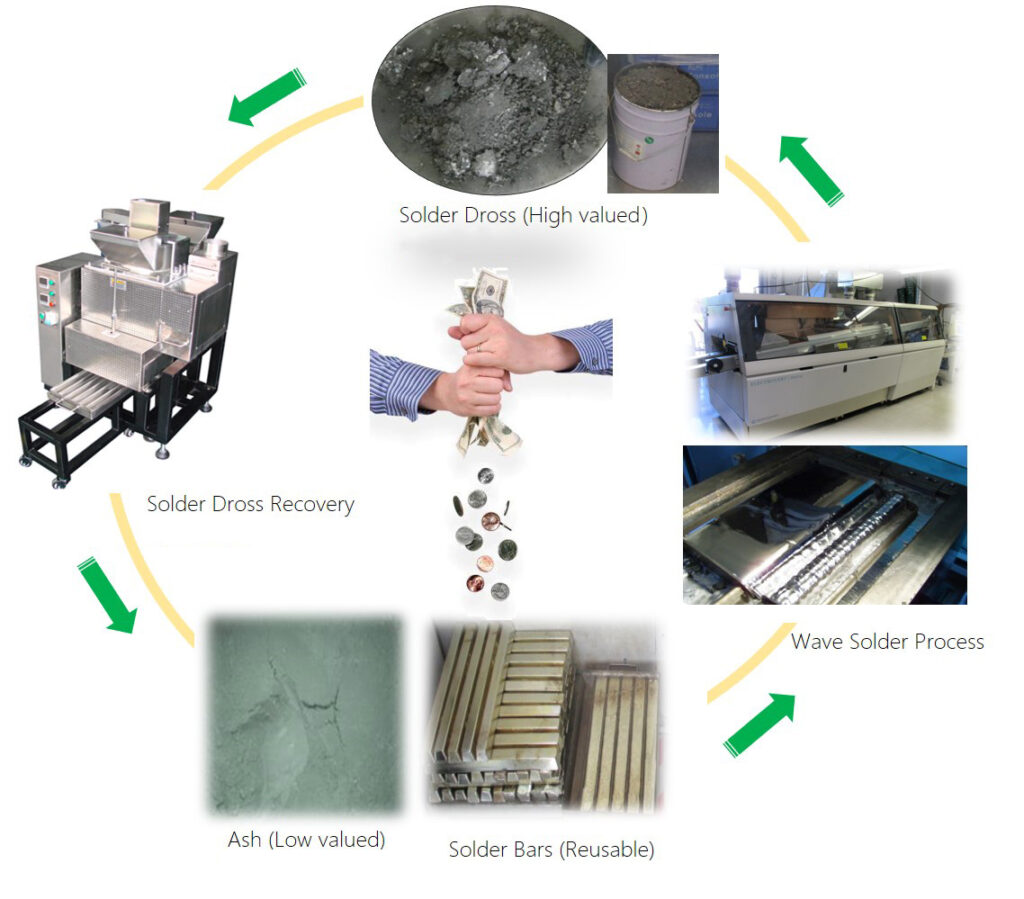

Solder Dross Separation Machine is an endeavor in reverting and recycling the oxides which occur during working of a Wave Soldering Machine in order to reduce production cost, create a greener environment and assist the quality process.

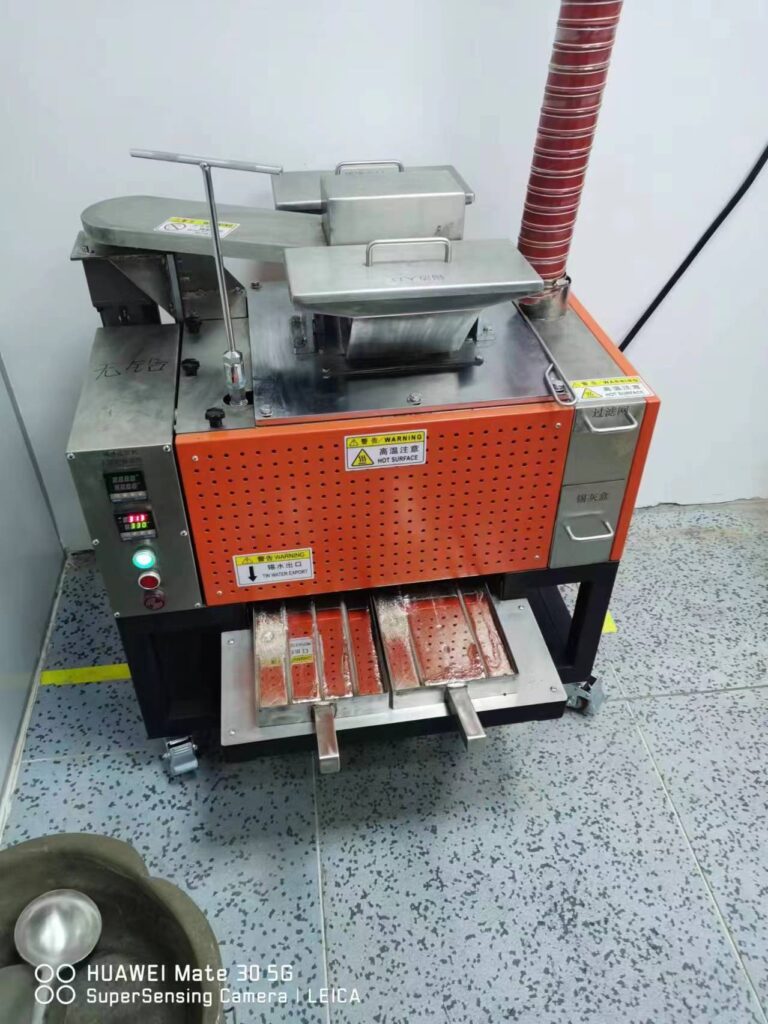

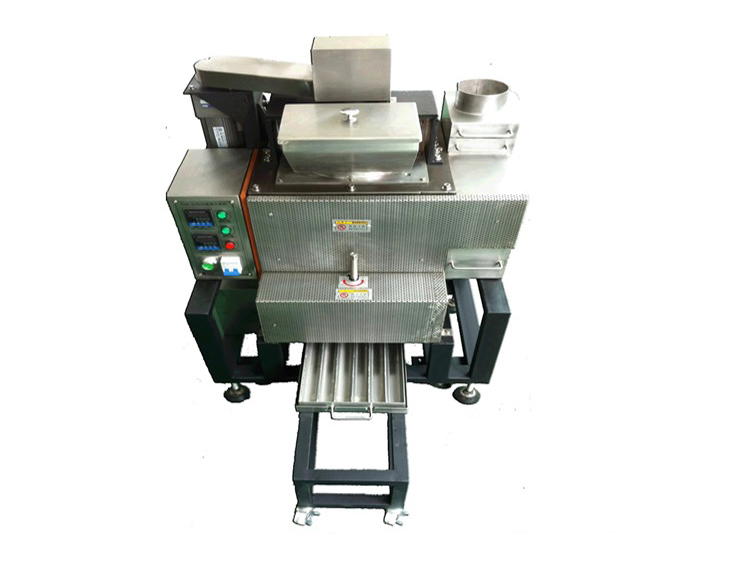

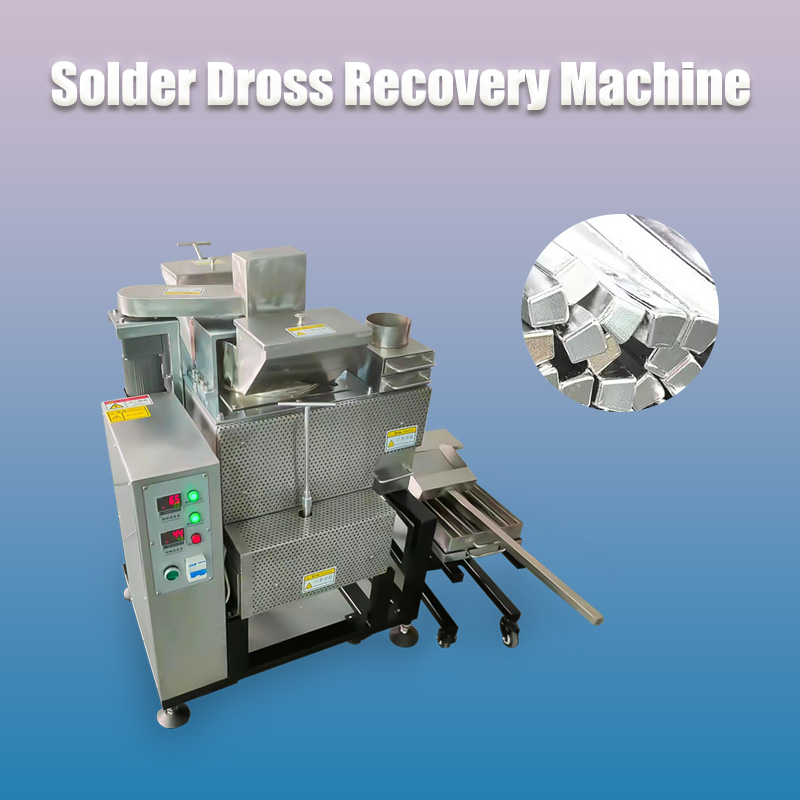

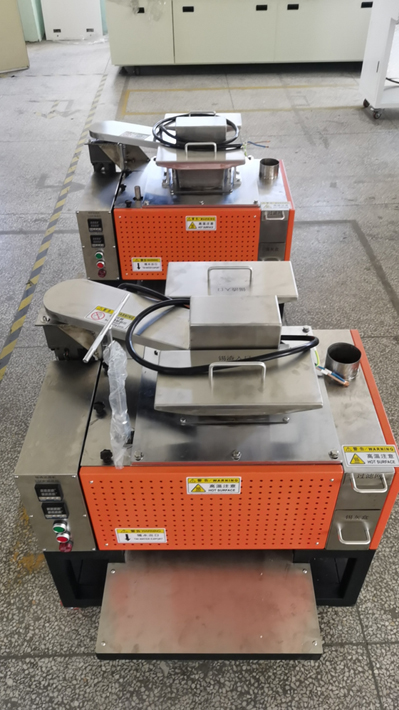

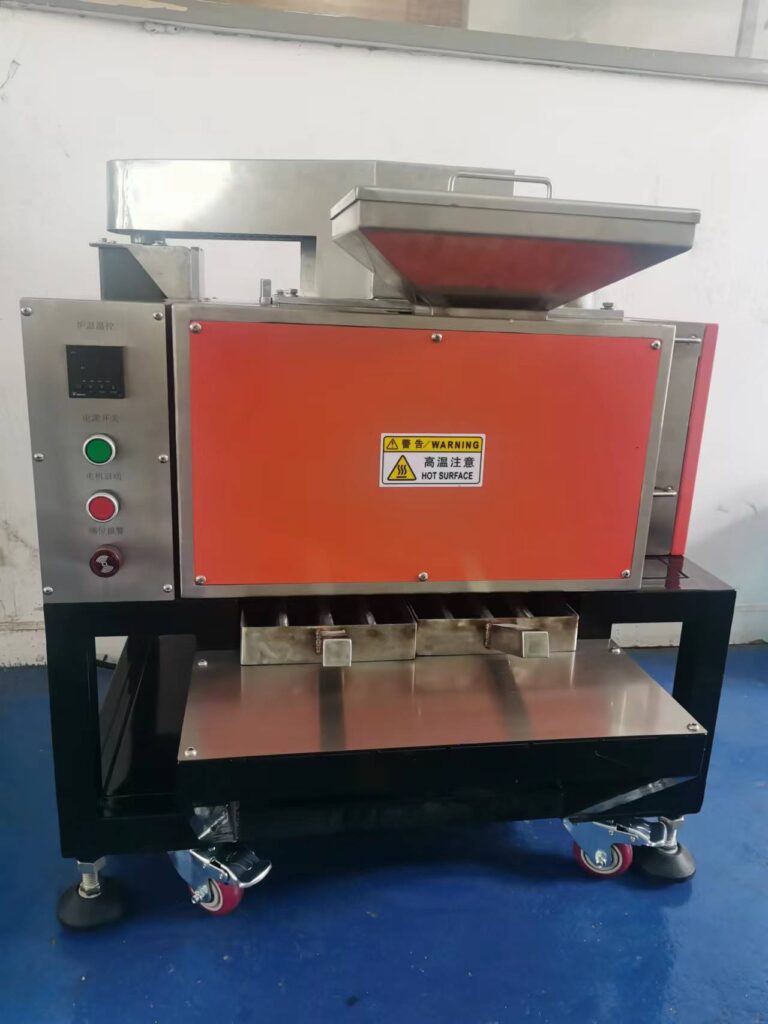

Solder dross recovery machine
Product Description：
Solder dross recycling machines utilize physical separation technology to directly reduce oxide dross generated from wave soldering or hand soldering into high-purity tin ingots, recovering up to 90% or more of the solder and significantly reducing tin dross waste by over 75%. Its core advantages include: substantial savings in procurement costs, reduced environmental treatment expenses, pollution-free recycling of tin resources, and increased production efficiency.
Recycling has high economic, social, and environmental value.
Solder dross recovery machine can turns the oxide (thin dross), of which comes from wave soldering machine, dip oven, manual soldering, into pure tin.
The separation rate ups to 93.6% and the recycled pure tin can lunch into production directly. 316L stainess steel oven can bear high temperature and rust. Max. 70kg “bottom tin” stored in empty oven, needs 60mins to be melt when uses the machine.
Running video:
product features
1.Highly effective recycling of the solder waste, up to 80-90% yield .
2.No need to add any chemicals or reducers to the process uses physical separation to ensure a
good quality product.
3.Button controls, digital temperature control sheet, accurate temperature control.
4.All-stainless steel tank, clean convenience.
5.316 grade stainless mixing bowl with an 60kg capacity with heating power for complete mixing.
6.Electronic liquid level alarm, manually put tin.
7.Automatic separation of tin and tin ash, into the tin and tin-ash collection device.

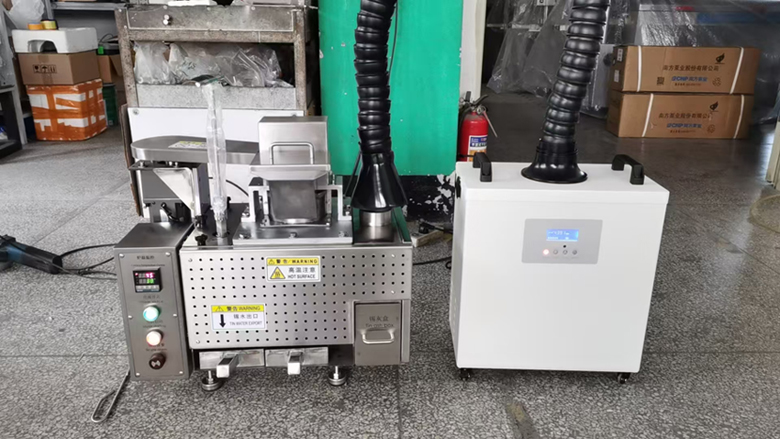

8.Independent smoke filtration system (Optional).
Specification of Solder Dross Recovery Machine
|
Model |
AWS-S10 |
|
Mixing motor |
1φ 220V 90W |
|
Mixing Capacity of Bottom Tin |
10KG |
|
Temperature Scope |
Up to 350℃ |
|
Heating-up time |
30MIN |
|
Feeding time |
Continuous5-20kg/15min |
|
Dimension |
500*（L）250(W)*600(H) |
|
Totol Power Consumption |
2kw |
|
Normal running power |
0.6kw |
|
Power |
1φ220V 50Hz |
|
Net Weight |
Appro*45kg |
We are experts in the field of solid waste recycling especially metal recycling. We can provide a complete set of solutions, including waste cable recycling, waste circuit board recycling, metal and non-metal crushing and sorting, mixed plastic recycling, etc. If you have any need of our machine, feel free to contact Gomine Machinery.
