Motor cutting and recycling machine
Product Description：

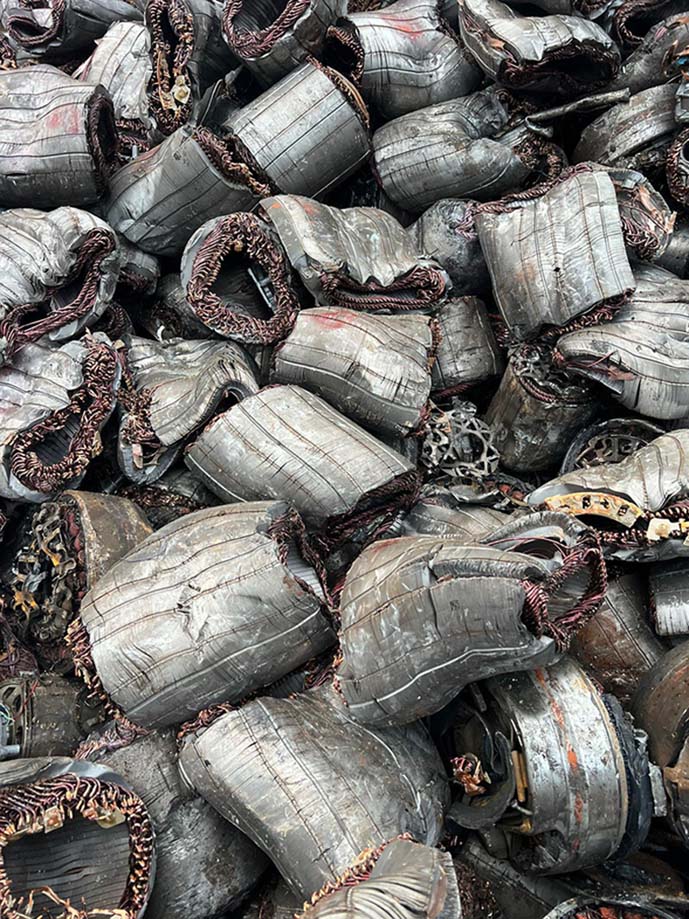

Motor dismantling machines (also known as stator copper stripping machines) are environmentally friendly equipment for efficiently processing waste motors. They primarily utilize hydraulic technology to separate the copper wires from the silicon steel sheets inside the stator. Their core functions include cutting the copper wires in the motor stator and pulling the copper wires out of the silicon steel sheets. This equipment replaces manual labor, significantly improving recycling efficiency and ensuring the copper wires are intact and properly separated from the silicon steel sheets for reuse.
Recycling has high economic, social, and environmental value.
Detailed introduction of core functions:
High-efficiency separation of copper and iron: Specifically designed for dismantling the stators of various old motors such as washing machines and air conditioner compressors, completely separating the copper coils (enameled wire) from the stator core (silicon steel sheets).
Hydraulic copper cutting/shearing:
Utilizes a hydraulically driven copper cutting machine to cut the copper wire at one end of the motor stator, preparing for subsequent copper pulling.
Hydraulic copper pulling/extraction: Uses a hydraulic copper pulling machine to quickly pull the cut copper coils out from the other end of the stator.
Increased recycling rate and value: Compared to manual dismantling, this equipment is faster and can maximize the integrity of the copper wires and silicon steel sheets, achieving maximum resource reuse.
Environmentally friendly and energy-saving: It is a professional environmentally friendly equipment in the field of waste material recycling and reuse.

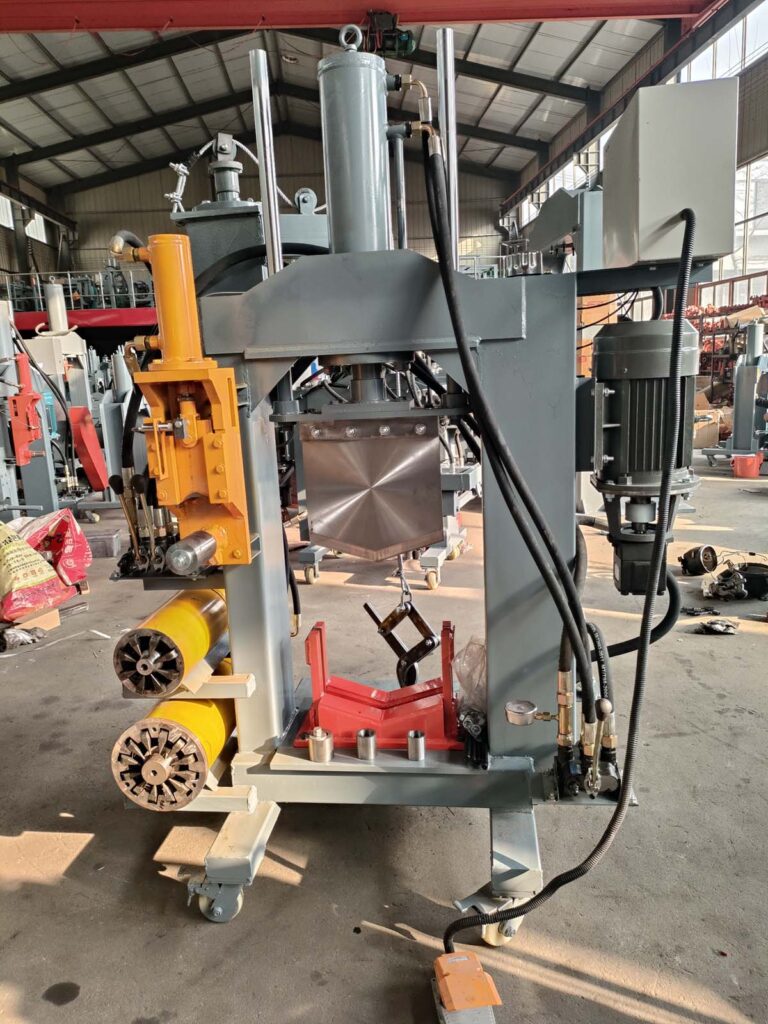

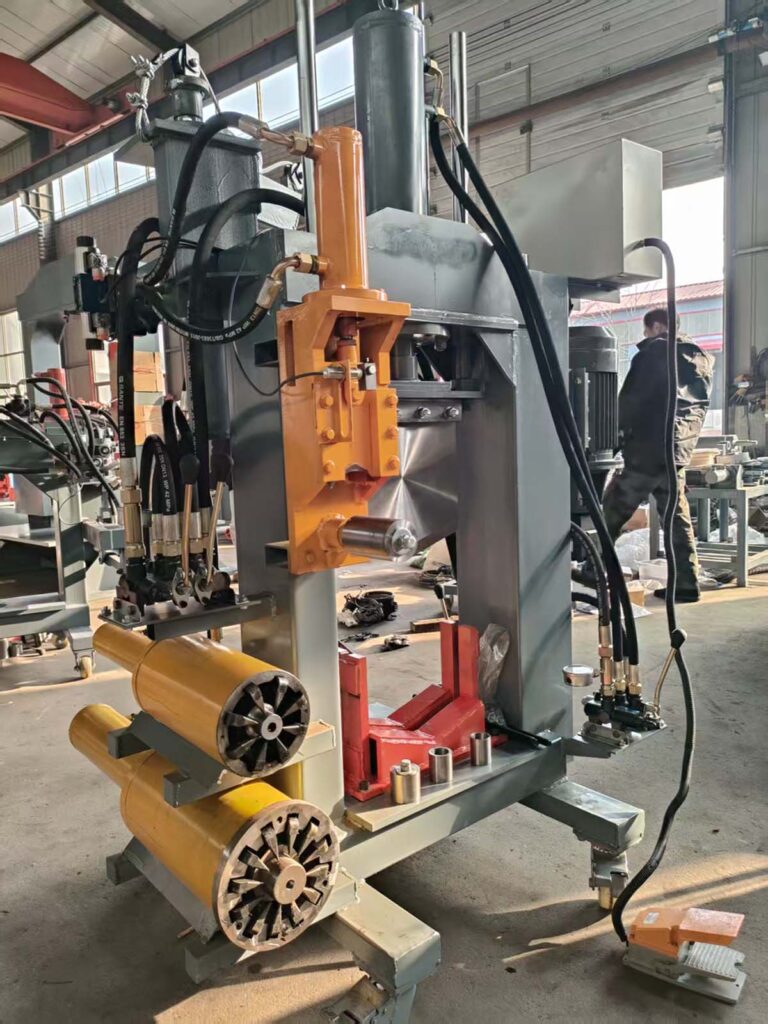

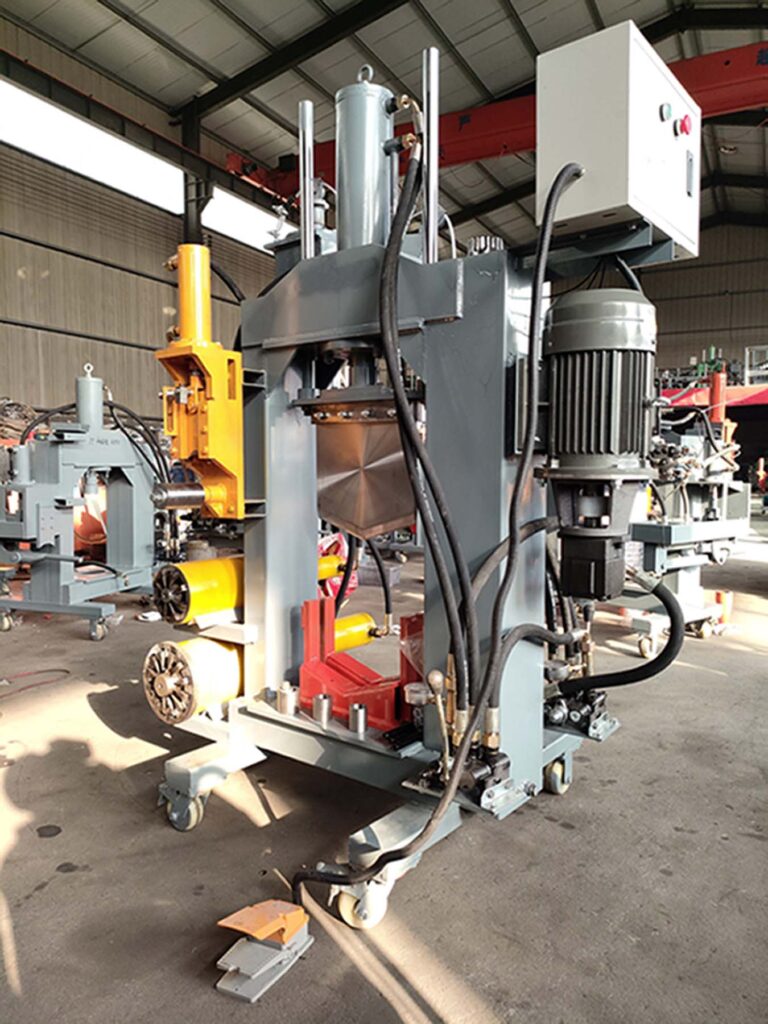

A typical complete set of motor dismantling machines consists of two parts: a hydraulic copper cutting machine and a hydraulic copper pulling machine.
Running video:

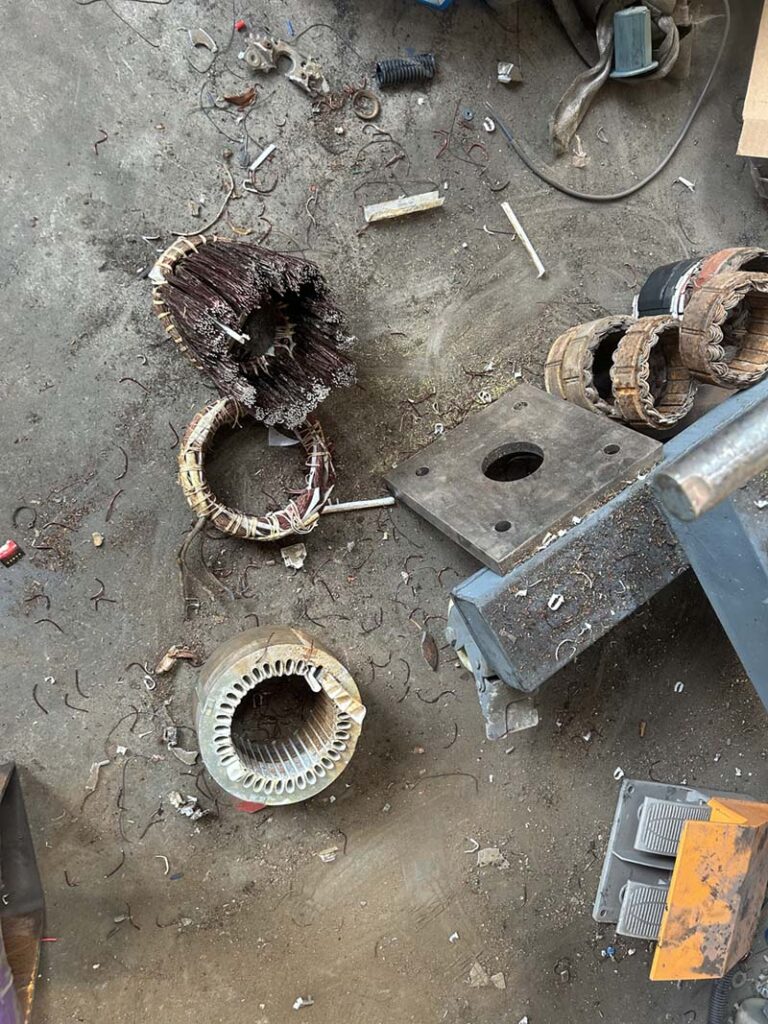

Detailed Photos:
|
Model |
Power |
Dimension |
Weight |
|
AWS-3s |
3kw |
140*95*170cm |
460kg |
|
AWS-5s |
4kw |
140*95*90cm |
580kg |
|
AWS-7s |
5.5kw |
200*131*121cm |
780kg |
|
AWS-9s |
5.5kw |
200*131*121cm |
830kg |
Function Description：

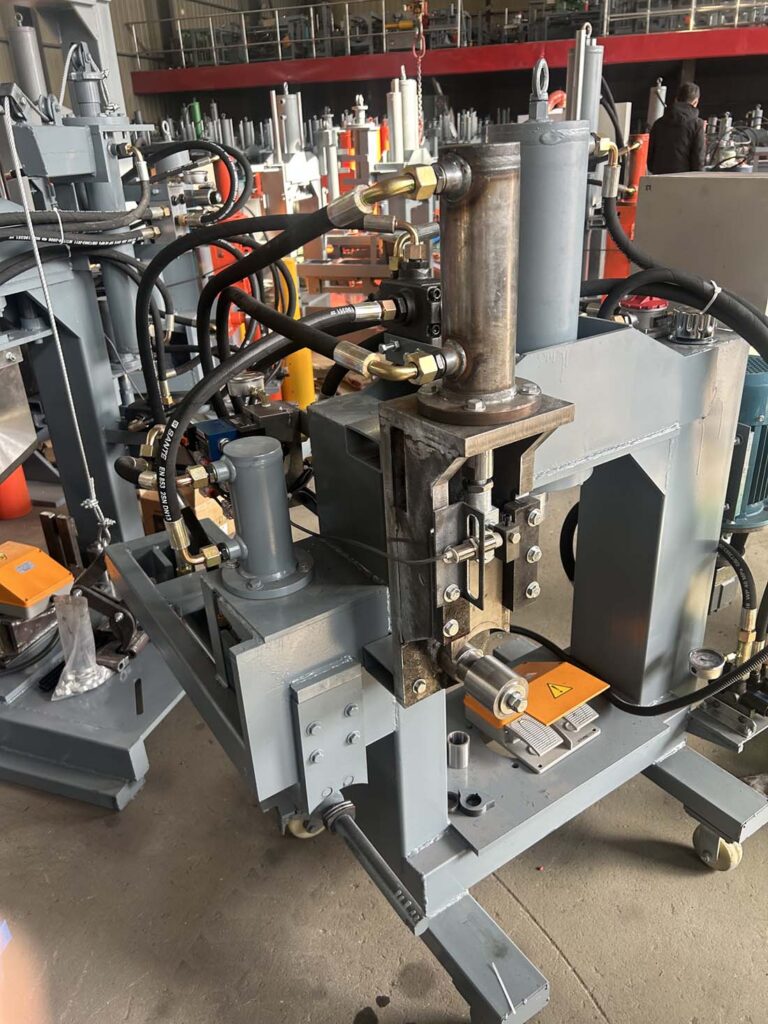

The cutting blade is a 10cm widened and thickened laser cutting blade with adjustable line position. The blade operates on a scissor-cutting principle, and the appropriate cutting blade positioning shaft can be replaced according to the stator inner diameter to increase the cutting surface and improve efficiency. The push rod function features dual-cylinder operation, with one clamping and one pushing for convenient and fast operation. Compared to the claw function, it eliminates the need to replace the baffle, preventing wire jamming and clamping.
Detailed Photos
 |
 |
 |
 |
 |
 |
