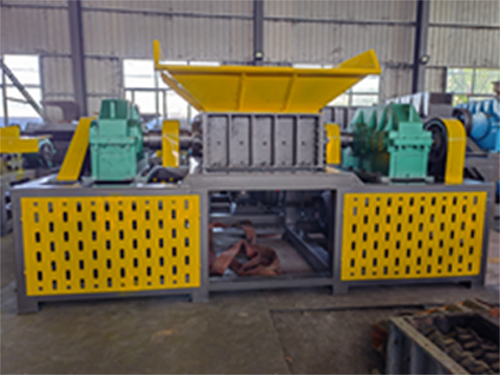

Double-shaft shredder

Get Best Price whatsApp

Application of Double-shaft shredder:

Double shaft shredder is designed for a wide array of applications and industries, suitable for shredding solid material such as E-waste, metal, wood, plastic, scrap tires, packaging barrel, pallets, etc.

1.We are a professional recycling equipment supplier and manufacturer with many years of experience.
2.We offer customized services.
3.We have a professional technical team that can provide you with expert technical support.

Technical Parameters:

Model

Blade(mm)

Dimension

Weight

Motor(kw)

Speed reducer

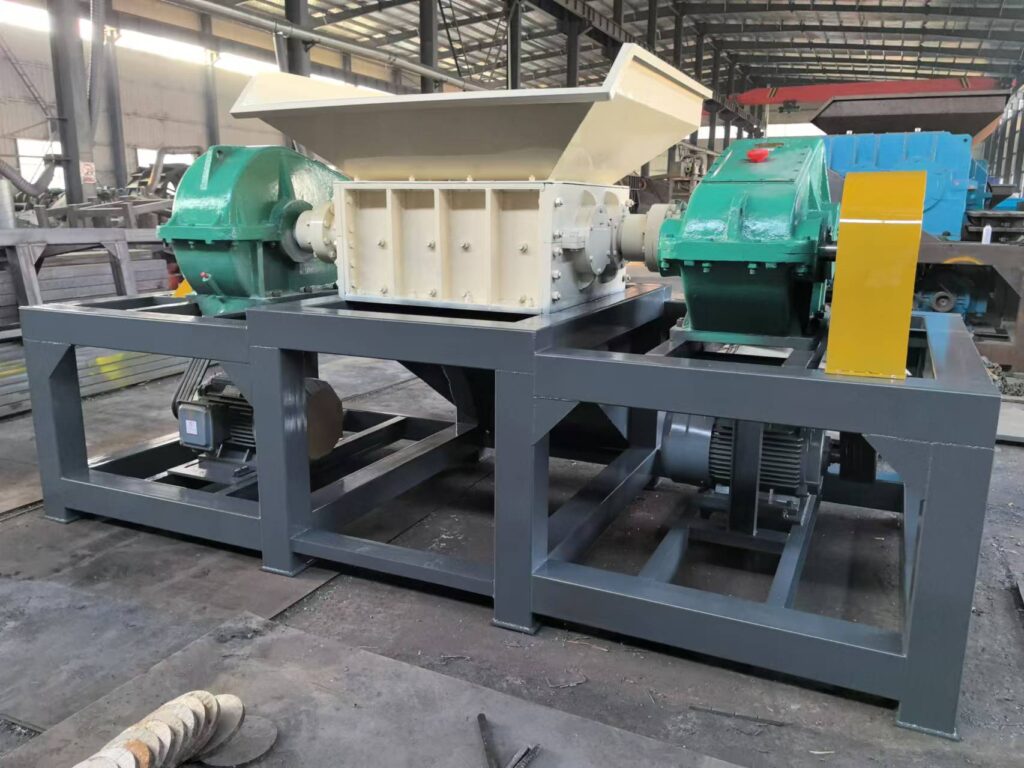

AWS-800

300

3600*1750*2200mm

6000kg

30*2

650*2

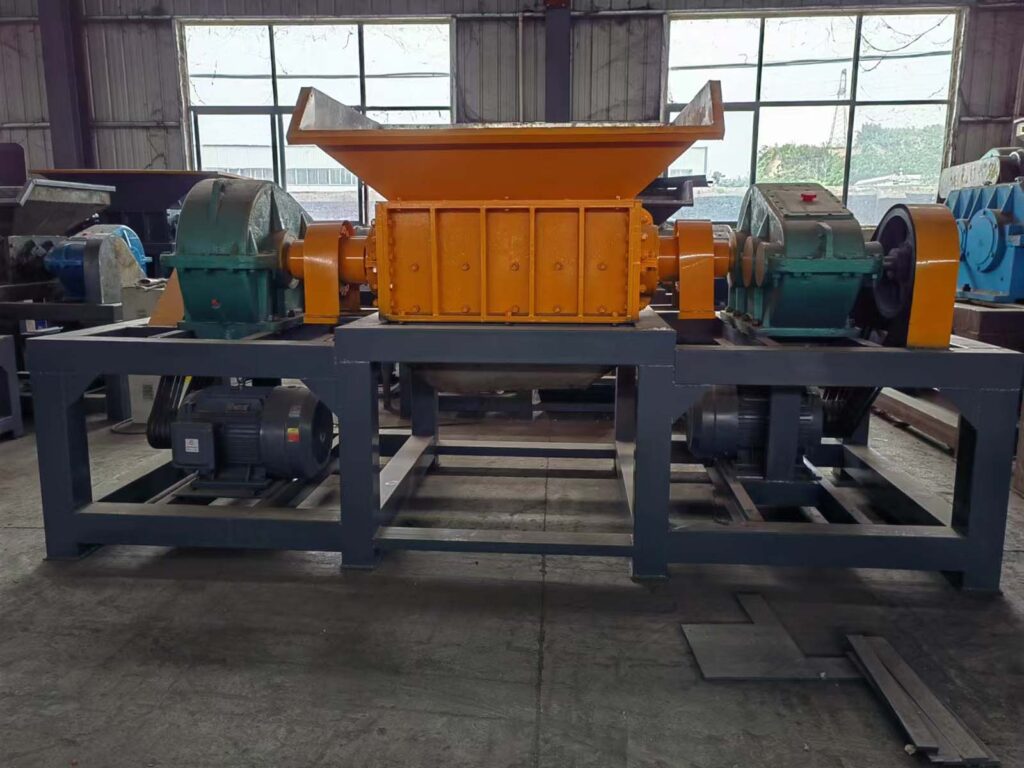

AWS-1000

400

3800*1750*2300mm

7500kg

37*2

650*2

AWS-1200

400

4200*1750*2300mm

9000kg

45*2

750*2

AWS -1400

450

5000*2000*2500mm

14000kg

75*2

850*2

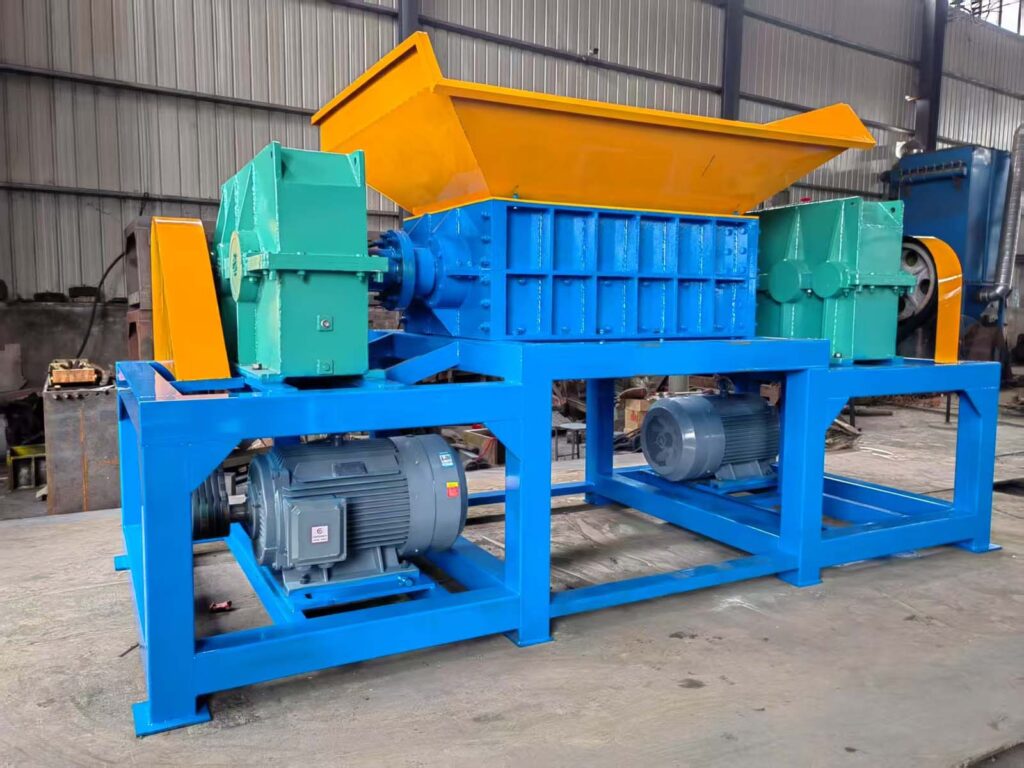

AWS-1600

550

5300*2300*3400mm

/

90*2

450*2

AWS-1800

600

6000*2500*3700

/

110*2

500*2

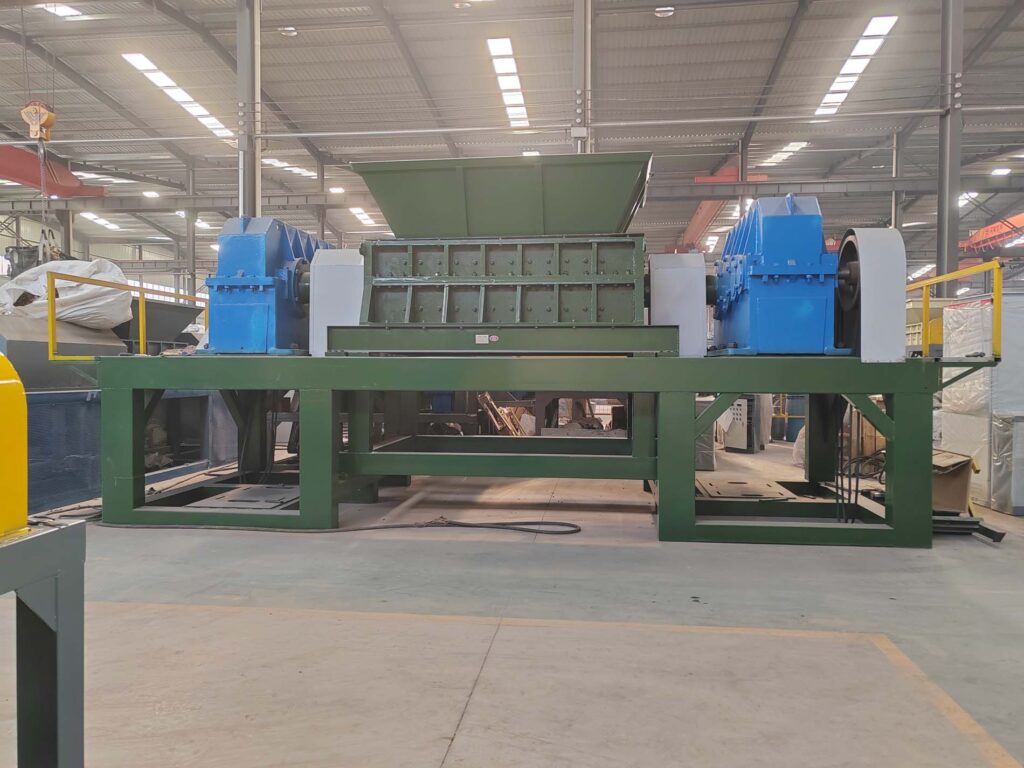

AWS-2000

750

6500*2500*3900

/

160*2

560*2

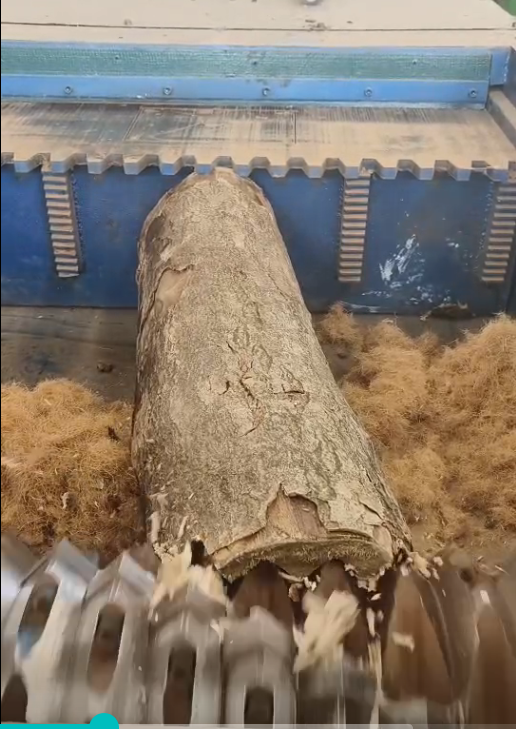

Double shaft plastic shredder running video:

The commonly used materials for shredder blades are currently positioned on the market as follows: SKD-11, Cr12MoV1, 9CrSi, Gr18, Gr15, etc. According to the different materials to be crushed, the selected blade material is also different. Plastic crusher: 9CRSI, W5SI6, SKD-11. Wood crusher: 9CRSI, W5SI6, SKD-11, CR12. Metal crusher: Cr12MoV1, SKH, H13, 6CRW2SI. The key to the length of the service life of the blade of the double-shaft shredder is the reasonable use of the blade, which requires the production experience of the shredder blade manufacturer.

Working principle of Double shaft shredder machine:

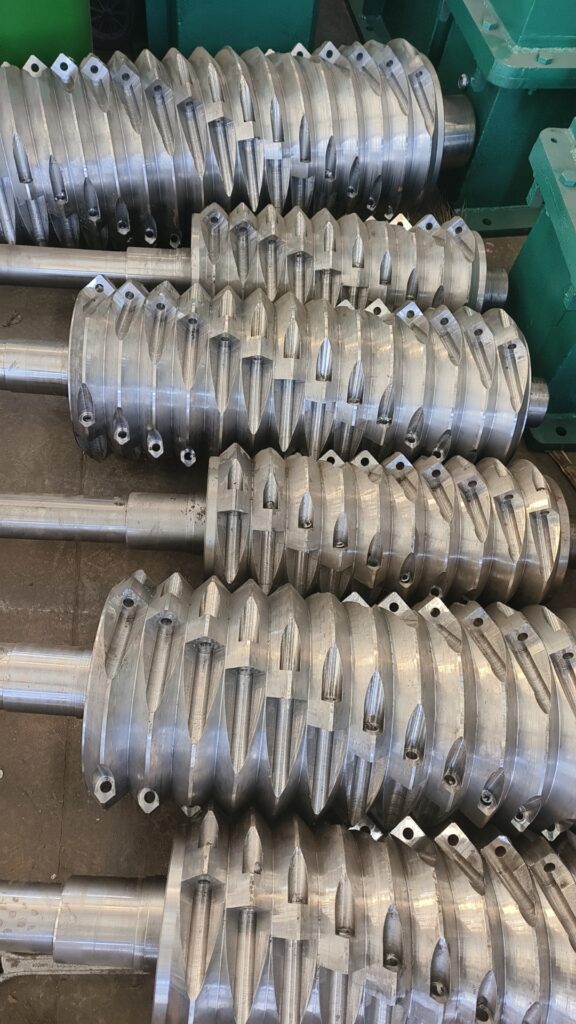

Double shaft shredder uses the interaction of movable cutter heads and fixed knives to tear, cut and extrude the material into small size. The cutter head is consists of basic shaft and pieces of quadrangle cutter. There are four edges which are easy to change. ‘V’ shaped rotary cutters are fixed on single shaft. The fixed cutter is mounted at an angle in adjacent to rotary cutter to achieve better cutting. During the grinding process, the evenly cutting, saving of energy and reducing of noise are ensured by the installation of ‘V’ shape rotor knives. Also the knives are very easy to install and remove.

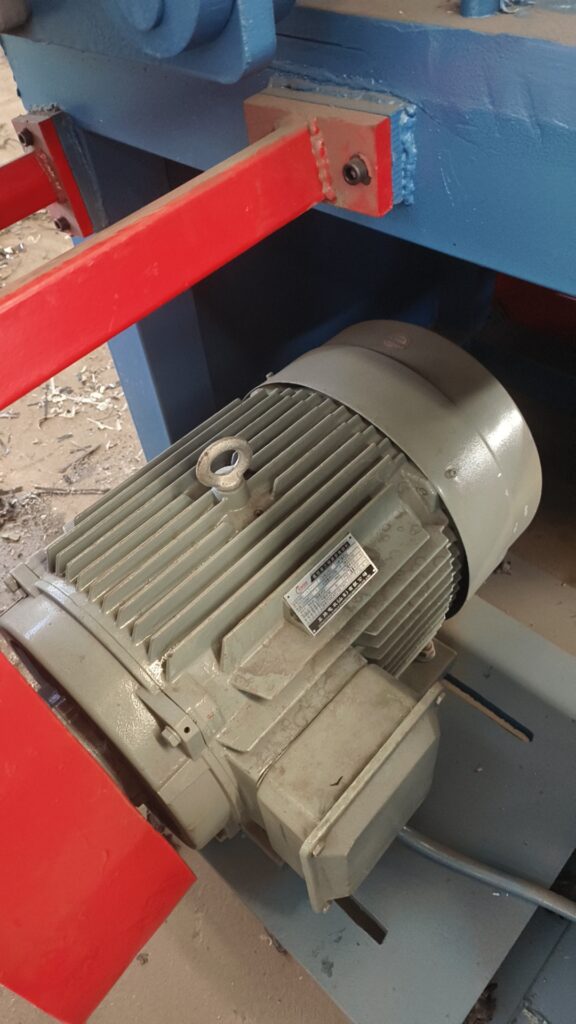

The motor drives the shaft to make knife rotates in high speed, the material are put to between the knife shaft and fixed knife, the materials are shredder, the qualified size will discharge from the screen mesh, the oversize material will be send back for re shredding. The final product size can be adjusted by changing the final product size.

Advantages of Double shaft shredder machine:

  1. The shredder Double shaft for plastic can shred various bulk materials, basket materials, pipe, plate, sheet, tire, big roll film, which are difficult to be shredded by single shaft shredder.
  2. The frame is combinational structures, made from precision machined extra-thick sheet, slewing axis is forced, Lange-angle, hexagonal prism, the hopper is large-caliber, and substantial, so good-sized material is practicable.
  3. Revolving knife is designed and processed particular in thickness, shape, arrange order and so on.
  4. PLC control system, forward and reverse operate and stop automatically can protect the machine when the materials is too big and much. Operate safely, low-speed running, low noise, little dust.
  5. The knife is made from special alloy steel, sturdy and durable.

We are experts in the field of solid waste recycling especially metal recycling. We can provide a complete set of solutions, including waste cable recycling, waste circuit board recycling, metal and non-metal crushing and sorting, mixed plastic recycling, etc. If you have any need of our machine, feel free to contact Gomine Machinery.
