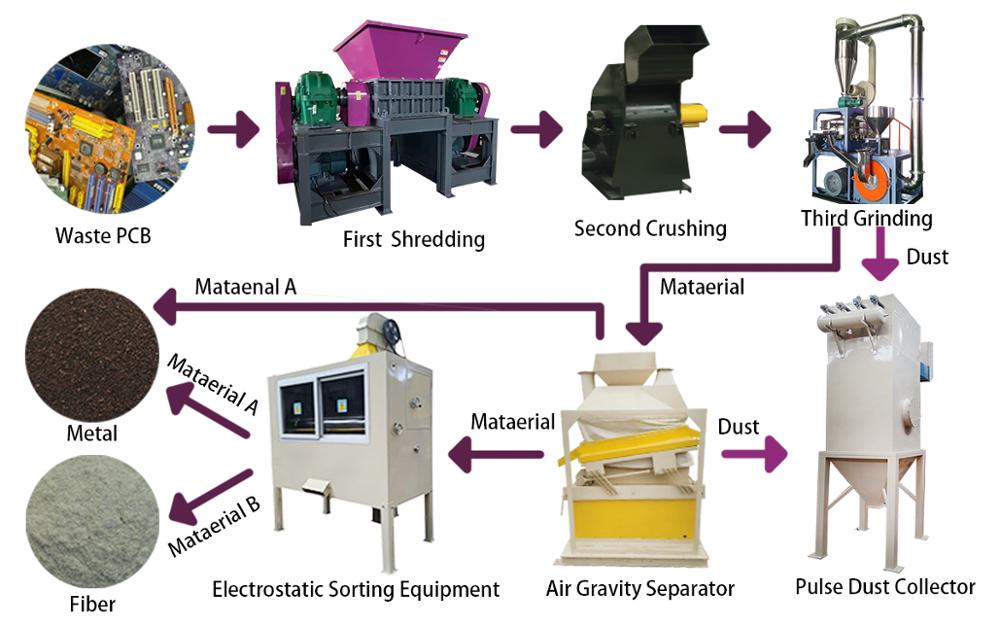

Application of Pcb Circuit Board Recycling Machine:

Step 1: Electronic components dismantling
Usually, the first step of circuit board recycling is to separate the electronic components from the circuit boards by using PCB dismantling machine. Then you will get naked circuit mother boards, which will get further processing to get copper powder and resin powder.

Step 2: PCB boards shredding and crushing

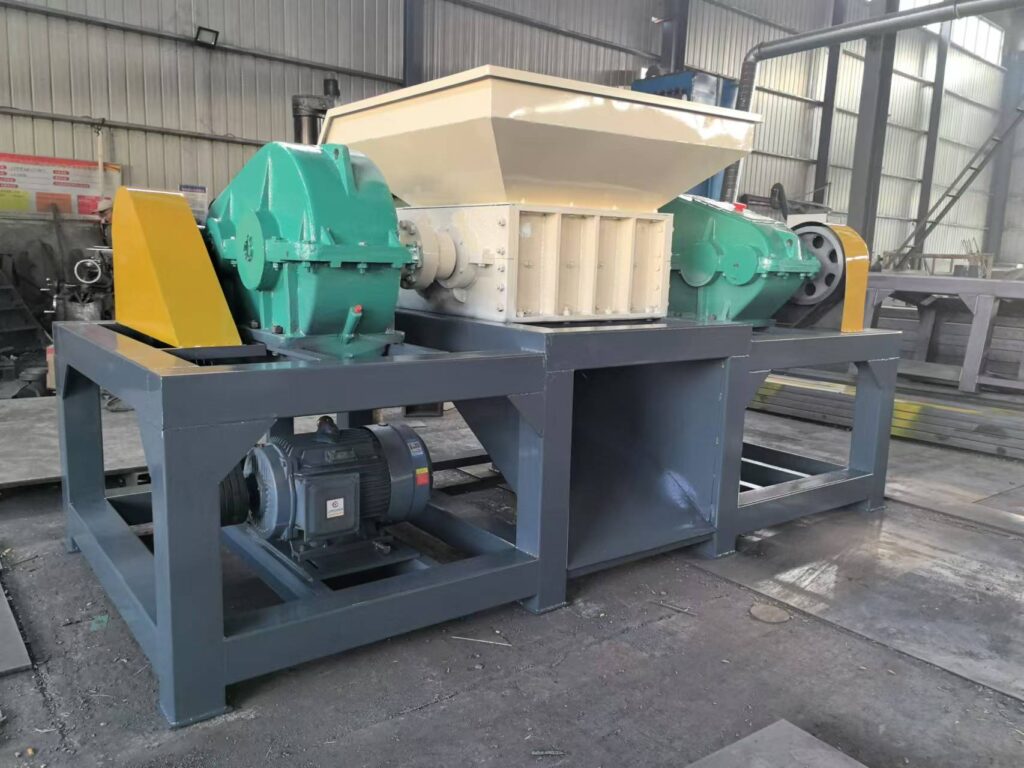

Circuit board shredder is the very first machine to size reduce circuit board. Its infeed opening should be big enough to process tons of circuit board at the same time. During shearing and crushing of 2 rotors, circuit boards are broken down into irregular pieces. For the first shredding machine, we choose the double shaft shredder. After circuit board shredding, the particles are around 60mm by 60mm. Next, the second crushing machine is a granulator, resulting in 20mm particles. Then the shredded material is collected in a mesh box and processed further.

Step 3: Separate the metal and non-metal powder
The shredded PCB will be separated by the air separator and the electrostatic separator. Our PCB recycling machine adopts dry type and physical crushing, separation and dedusting methods, which can keep no pollution to the environment. And the high pressure electrostatic separation combined with air separation process, which can purify approximately 99% metal powder.


Circuit board recycling machine in operation video:

Packaging & Shipping

Technical Parameters:

We are experts in the field of solid waste recycling especially metal recycling. We can provide a complete set of solutions, including waste cable recycling, waste circuit board recycling, metal and non-metal crushing and sorting, mixed plastic recycling, etc. If you have any need of our machine, feel free to contact Gomine Machinery.
